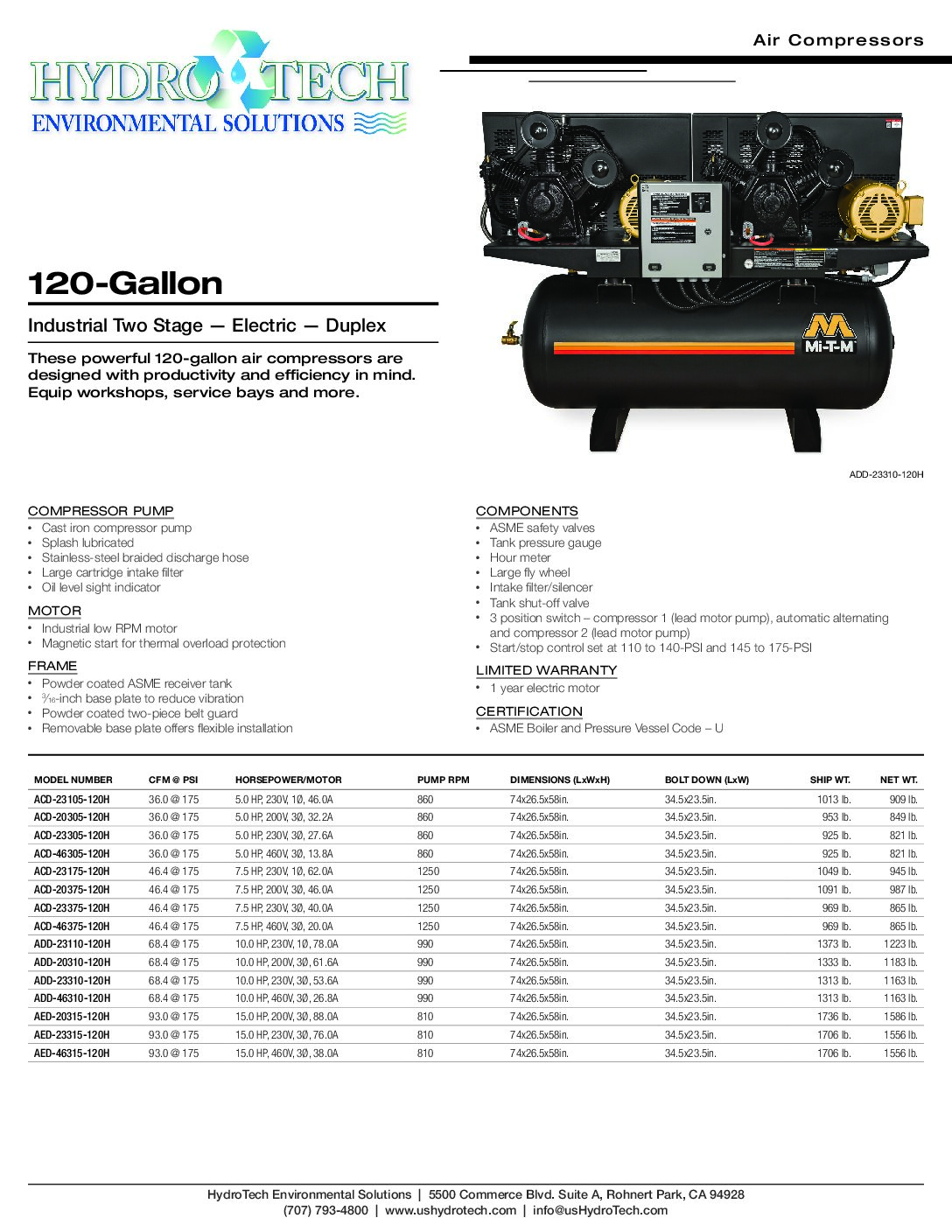

These duplex horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator

Motor:
·Industrial low RPM motor
·Magnetic start for thermal overload protection

Frame:
·Powder coated ASME receiver tank
·3/16-inch base plate to reduce vibration
·Powder coated two-piece belt guard

Components:
·ASME safety valves
·Tank pressure gauge
·Hour meter
·Large fly wheel
·Intake filter/silencer
·Tank shut-off valve
·3 position switch – compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Limited Warranty:
·1 year electric motor

Certification:
·ASME Boiler and Pressure Vessel Code – U

Models Available:
ACD-23175-120H – Horsepower/Motor: 7.5 HP, 230V, 1Ø, 62.0A
Net/Ship Wt.: 945/1049 lb.
ACD-20375-120H – Horsepower/Motor: 7.5 HP, 200V, 3Ø, 46.0A
Net/Ship Wt.: 987/1091 lb.

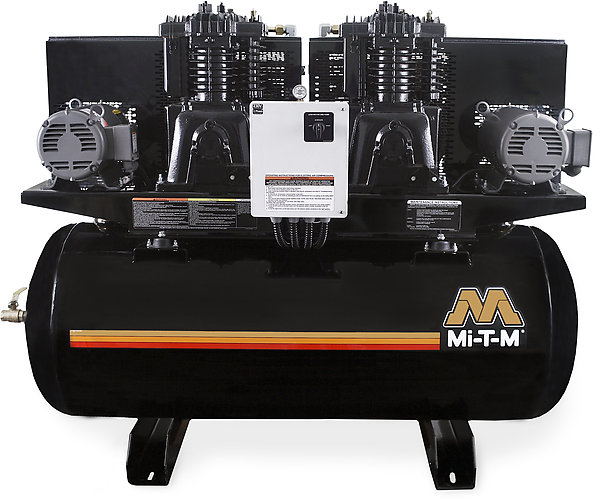

ACD-23375-120H – Horsepower/Motor: 7.5 HP, 230V, 3Ø, 40.0A
Net/Ship Wt.: 865/969 lb.
ACD-46375-120H – Horsepower/Motor: 7.5 HP, 460V, 3Ø, 20.0A
Net/Ship Wt.: 865/969 lb.
