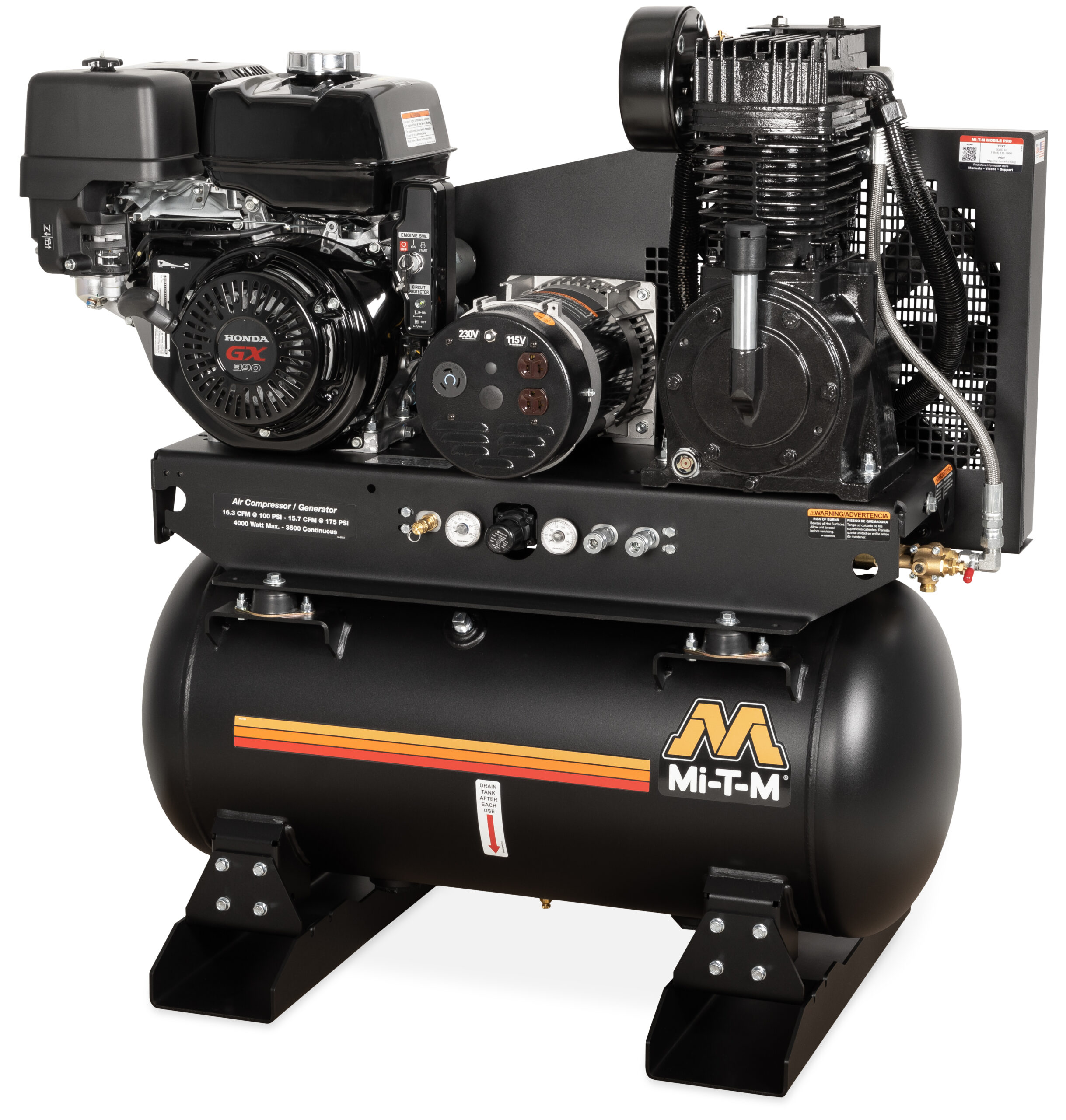

30-Gallon Two Stage Gasoline Combination

Name: 30-Gallon Two Stage Gasoline Combination
Brand: Mi-T-M
SKU: AG2-SH13-30ME
Availability: InStock

AG2-SH13-30ME

The 30-gallon two stage air compressor/generator tie two units into one for optimal power remodelers, contractors and DIYers appreciate.

Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator

Generator:
·Brushless alternator
·Total harmonic distortion (THD) less than 6%
·100% copper windings
·(2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame:
·Powder coated ASME receiver tank
·3/16-inch base plate to reduce vibration
·Powder coated two-piece belt guard

Components:
·Regulator and two gauges for tank and outlet pressure
·Manual drain valves for proper maintenance
·16½-inch fly wheel
·Quality pilot valve unloader

Limited Warranty:
·3 year engine

Certification:
·ASME Boiler and Pressure Vessel Code – UM

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult Factory.
Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.
Equipped with electric start – battery, box and cables not included.

Weight	557 lbs
Dimensions	40 × 24.5 × 45 in
Tank Size	30 Gallon
Alternator Wattage – Cont. With Comp. On-Load	2300 Watts
Alternator Wattage – Cont. With Comp. Off-Load	3500 Watts
Displacement/Engine	389cc Honda GX390 OHV
CFM @ PSI	15.7 @ 175, 16.4 @ 90
Max AC Output	4000 Watts

Weight & Dimensions

Width	24.5
Height	45
Length	40
Shipping Weight	557
Net Weight	457

Product Sheet

Product Manual

AX-0016 – Battery, Battery Tray, Box and 2-foot of Cables
Attaches to engine side of unit

AX-0063 – Lifting Hook
For easier portability

AX-0068 – Idle Down
When activated, it automatically throttles down engine to conserve fuel

AX-0070 – Battery Tray, Box and 2-foot of Cables
Attaches to engine side of unit

IX-0001 – Vibration Isolator Pads
Isolators protect the unit from vibration during use. Recommended for models mounted in service truck applications

IX-0055 – Remote Start/Choke
7-foot wire extension for key switch

IX-0059 – Remote Start/Choke, Sealed Cable
7-foot wire extension for key switch
