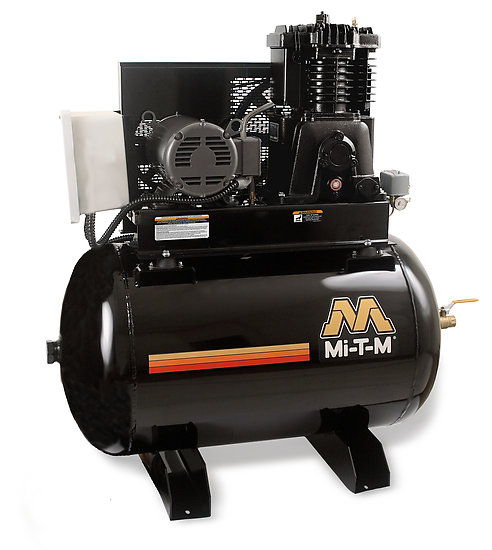

80-Gallon Two Stage Electric Simplex Horizontal Series – 7.5 HP

Name: 80-Gallon Two Stage Electric Simplex Horizontal Series - 7.5 HP
Brand: Mi-T-M
SKU: ACS Horizontal 7.5 HP
Availability: InStock

ACS Horizontal 7.5 HP

Horsepower/Motor

Clear

Add to Quote

INNOVATIVE & SUSTAINABLE SOLUTIONS

FULL-SERVICE COMPANY

SERVING COMPANIES NATIONALLY

BUILT FOR LONG-LASTING EFFICIENCY

These horizontal 80-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator

Motor:
·Industrial low RPM motor
·Magnetic start for thermal overload protection

Frame:
·Powder coated ASME receiver tank
·3/16-inch base plate to reduce vibration
·Powder coated two-piece belt guard

Components:
·ASME safety valves
·Tank pressure gauge
·Hour meter
·Large fly wheel
·Intake filter/silencer
·Tank shut-off valve

Limited Warranty:
·1 year electric motor

Certification:
·ASME Boiler and Pressure Vessel Code – U

Models Available:
ACS-23175-80H – Horsepower/Motor: 7.5 HP, 230V, 1Ø, 31.0A
Net/Ship Wt.: 574/678 lb.
ACS-20375-80H – Horsepower/Motor: 7.5 HP, 200V, 3Ø, 23.0A
Net/Ship Wt.: 545/649 lb.
ACS-23375-80H – Horsepower/Motor: 7.5 HP, 230V, 3Ø, 20.0A
Net/Ship Wt.: 534/638 lb.
ACS-46375-80H – Horsepower/Motor: 7.5 HP, 460V, 3Ø, 10.0A
Net/Ship Wt.: 534/638 lb.

Dimensions	52 × 26.5 × 53 in
Tank Size	80 Gallon
Power Source	Electric
CFM @ PSI	23.5 @ 175
Horsepower/Motor	7.5 HP, 230V, 1Ø, 31.0A, 7.5 HP, 200V, 3Ø, 23.0A, 7.5 HP, 230V, 3Ø, 20.0A, 7.5 HP, 460V, 3Ø, 10.0A
Pump RPM	1250
Bolt Down (LxW)	20.75×23.5 inches

Weight & Dimensions

Width	26.5
Height	53
Length	52

Product Sheet

Product Manual

IX-0001 – Vibration Isolator Pads
Isolators protect the unit from vibration during use. Recommended for models mounted in service truck applications

IX-0006 – Electric Tank Drain
Automatically drains liquid from compressor tank; recommended to use with an after cooler

IX-0052 – After Cooler
Removes up to 65% of the moisture from discharged compressed air and drops the temperature within 10°F of ambient

IX-0056 – Pneumatic Tank Drain
Automatically drains liquid from compressor tank; recommended to use with an after cooler

IX-0057 – Pneumatic Tank Drain, Requires After Cooler Option, IX-0052
Automatically drains liquid from compressor tank; recommended to use with an after cooler

IX-0061 – Low Oil Monitor
Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0062 – Low Oil Monitor
Low oil sensor does not allow unit to start when oil levels fall below an adequate level

IX-0063 – Low Oil Monitor
Low oil sensor does not allow unit to start when oil levels fall below an adequate level
