| Flow Rate | 0-15 GPM, 0-30 GPM |
|---|---|
| Coalescing Media | 672 sq. ft., 1,152 sq. ft. |
| Tank Holding Capacity | 170-gallons, 340-gallons |
| In-Line Strainer Pump | 1.0 HP, 120V, 1.0 HP, 300V |
| Power Requirements | 120V, 1Ø, 15.0A, 208-230V, 3Ø, 5.0A |

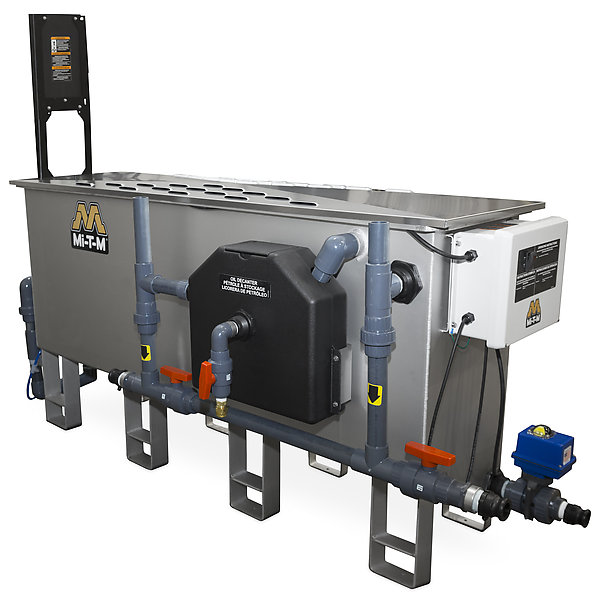

Above-Ground Water/Oil/Solids Separators
WOS Series
Designed to remove free oil from wash water before discharging to a sanitary sewer, the water/oil/solids separators will reduce the amount of suspended solids while removing hydrocarbons.
Features:
·Corona discharge ozone system
·Oil skimmer/decanter
·Discharge port
·Oil coalescing media
·1.0 HP surface-mount sump pump
·3-stage stainless-steel tank with sloped bottom design for easier solids removal
·ETL listed NEMA-4 rated corrosion-proof control panel
Accessories:
·Replacement coalescing media
Options:
·Continuous recirculation
·230V, 1Ø
·460V, 3Ø
Consult Mi-T-M Equipment Sales & Service for more information.
| MODEL NUMBER | FLOW RATE | COALESCING MEDIA | TANK HOLDING CAPACITY | IN-LINE STRAINER PUMP | POWER REQUIREMENTS |
|---|---|---|---|---|---|
| WOS-15-0M10 | 0-15 GPM | 672 sq. ft. | 170 gallons | 1.0 HP, 120V | 120V, 1Ø, 15.0A |
| WOS-15-0M30 | 0-15 GPM | 672 sq. ft. | 170 gallons | 1.0 HP, 230V | 208-230V, 3Ø, 5.0A |
| WOS-30-0M10 | 0-30 GPM | 1,152 sq. ft. | 340 gallons | 1.0 HP, 120V | 120V, 1Ø, 15.0A |
| WOS-30-0M30 | 0-30 GPM | 1,152 sq. ft. | 340 gallons | 1.0 HP, 230V | 208-230V, 3Ø, 5.0A |
