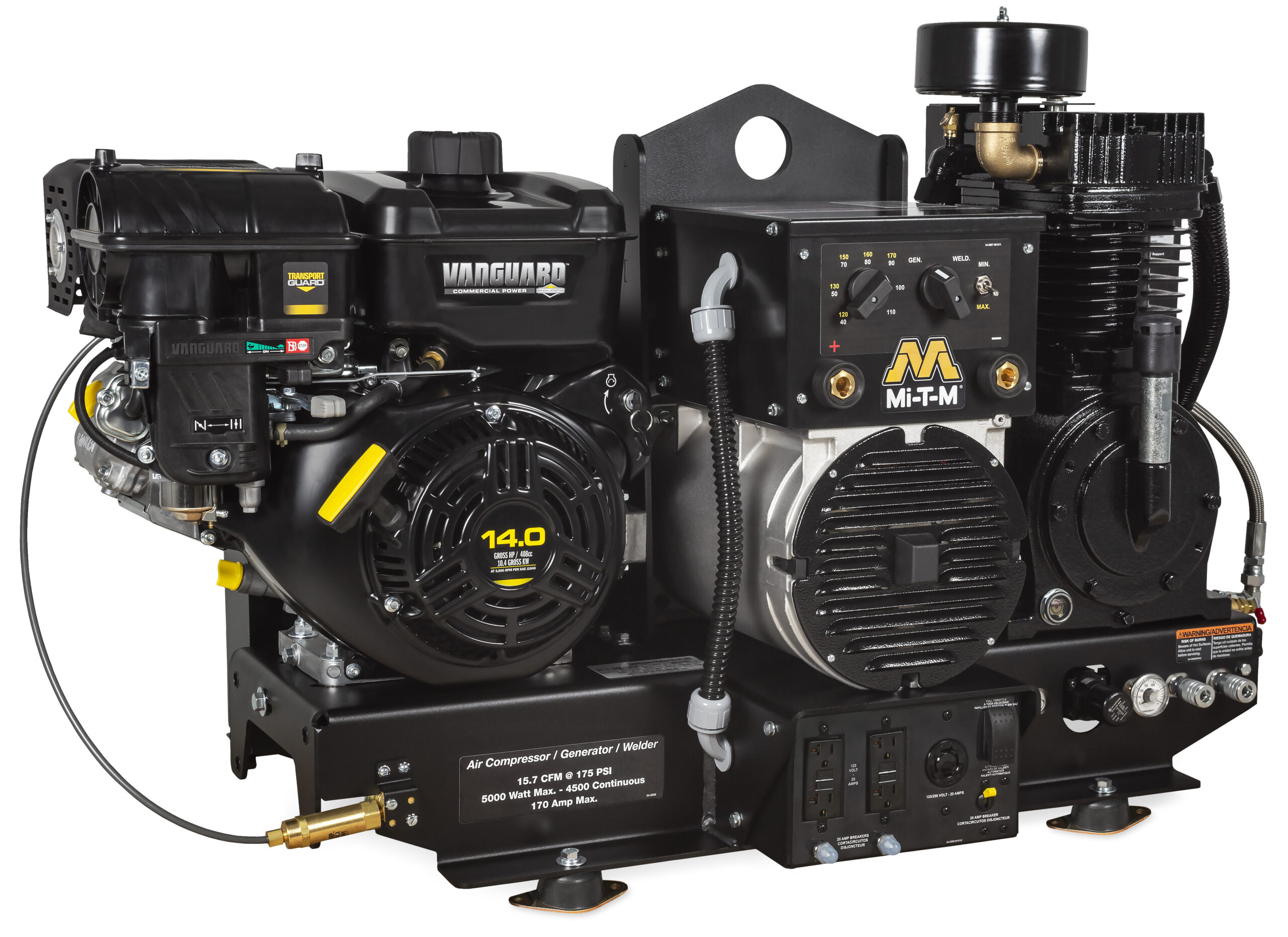

Base-Mount Two Stage Gasoline Combination

Name: Base-Mount Two Stage Gasoline Combination
Brand: Mi-T-M
SKU: AGW-SV14-B
Availability: InStock

AGW-SV14-B

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator

Generator:
·Brush-type 2 pole 120V/240V alternator
·Total harmonic distortion (THD) less than 6%
·100% copper windings

Welder:
·Amperage selection switch, 170A or 220A maximum

Frame:
·Powder coated two-piece belt guard

Components:
·Regulator and two gauges for tank and outlet pressure
·Manual drain valves for proper maintenance
·16½-inch fly wheel

Limited Warranty:
·3 year engine

AGW Series Operation
Generator Mode:
·AC current only
·Selector switch set to idle down
·Switch is set to full throttle
Welder Mode:
·DC current only
·Engine must be running full throttle
·Selector switch must be set to full throttle

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult Factory.
Electric Start – battery and battery cables not included.
Equipped with 150-PSI maximum rated regulator.

Weight	469 lbs
Dimensions	49 × 22 × 28.5 in
Tank Size	Base-Mount
Displacement/Engine	408cc Vanguard OHV
Rated Speed	3600 RPM
Generator – Alternator Wattage – Cont. On-Load @ 90 PSI	3000 watts
Generator – Alternator Wattage – Cont. On-Load @ 175 PSI	2500 watts
Generator – Frequency/Voltage	60Hz / 120V/240V
Generator – Max. Amps (120V/240V)	41.5/20.8 off-load
Generator – Cont. Amps (120V/240V)	37.5/18.8 off-load
Generator – Receptacles	(2) 120V, 20A GFCI duplex (1) 120V/240V, 20A twist lock
Welder – Duty Cycle (10 min. Run Time)	150A @ 100%
Welder – DC Voltage	50-170A working range
Fuel Tank	1.53-gallon
Max AC Output	5000 Watts
Rated AC Output	4500 watts
CFM @ PSI	15.7 @ 175, 16.4 @ 90
