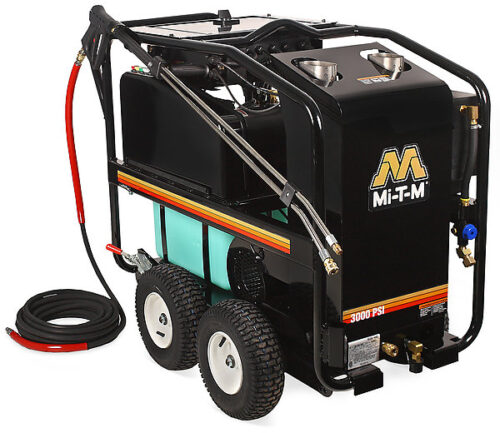

Contractors rely on the DHS Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.
Pump:
·External bypass system protects from heat build-up
·Factory preset unloader
·Forged brass manifold
·Thermal relief valve
·High pressure detergent injector
Motor:
·Totally enclosed fan-cooled electric motor with manual thermal overload protection
·35-foot power cord
Frame:
·Reinforced powder coated steel tube frame with center balanced lift
·13-inch flat-free tires
Components:
·Energy-efficient top-fired heat exchanger
·No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F
Unit Includes:
·Quick connect nozzles – 0°, 15°, 25° and 40°
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off
Limited Warranty:
·1 year electric motor
Certification:
·ETL Certified – US and Canada
HX-0070 – Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart
HX-0072 – Auto Start/Stop – Steam
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
HX-0074 – Auto Start/Stop – CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; monitors burner for proper ignition
HX-0076 – Auto Start/Stop – Steam – CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; monitors burner for proper ignition (Includes adjustable thermostat)
HX-0086 – 460V on 8.0-HP, 3Ø Model
Upgrades 230V, 3Ø model to operate at 460V, 3Ø
HX-0088 – Skid Feet
Stationary applications
HX-0161 – Hour Meter
Displays the number of hours unit has been in operation
HX-0294 – Adjustable Thermostat
Operator is able to adjust outlet water temperature between 98°-248°F
