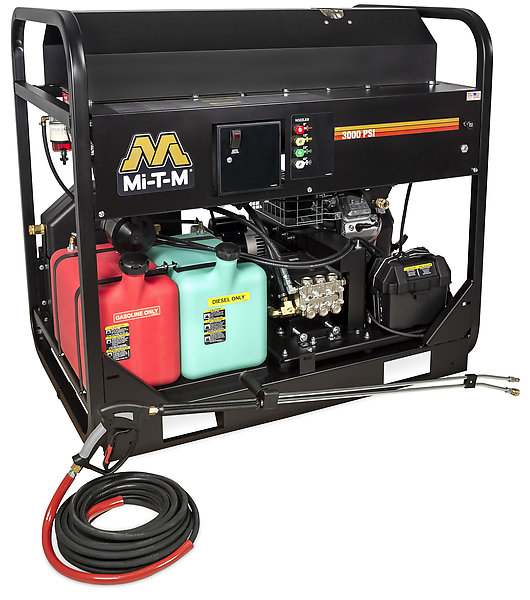

This heavy-duty skid series was designed with professional contract cleaners in mind. It is the perfect option for washing large machinery, equipment and facilities.
Pump:
·80-mesh, high-volume, stainless-steel screen inlet water strainer
·Factory preset unloader
Engine:
·Performance-proven industrial gasoline engine with electric start – battery not included
Frame:
·Heavy-duty powder coated steel square tube skid frame
Components:
·Horizontal schedule 80 pipe coil heat exchanger
·No.1 or No.2 diesel or kerosene fired burner (Not approved for bio-fuel)
·2900-watt generator
·High quality fuel filter/water separator ensures clean fuel supply
·Pressure relief valve protects against excessive system pressure
·Polyethylene burner and engine fuel tanks
Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes:
·Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off
Limited Warranty:
·3 year engine
Certification:
·CSA Certified – US and Canada
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult Factory.
49 state fuel tank.
HX-0130 – Three-Way Ball Valve
Allows the pressure washer to be operated from garden hose, float tank or trailer supply tank by adjusting ball lever valve
HX-0131 – High Pressure Detergent Injector, K7
Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only
HX-0133 – Steam Combination 250°F, K7
Increases outlet temperature to 250°F while lowering system pressure; for models equipped with K7 flow actuated unloaders
HX-0138 – Steam Combination 250°F
Increases outlet temperature to 250°F while lowering system pressure; requires HX-0200 option
HX-0145 – Adjustable Thermostat
Operator is able to adjust outlet water temperature between 86°-248°F
HX-0146 – Hour Meter
Displays the number of hours unit has been in operation
HX-0147 – Four-Point Lifting Capability
Allows unit to be lifted by crane
HX-0148 – Adjustable Detergent Valve
Adds the adjustable detergent valve to the control panel for the high pressure soap; for units with trapping unloaders
HX-0200 – Trapping Unloader
For hose runs longer than 50-foot and for cleaning elevated areas
HX-0257 – Clutch Drive Pump
Stops the pump from spinning in bypass mode and helps extend the life of the pump; changes GPM to 4.3 when added to the unit
HX-0264 – Clutch Drive Pump
Stops the pump from spinning in bypass mode and helps extend the life of the pump; standard flow rate
