| Soap Arch: GPM @ PSI | 35 @ 110 |
|---|---|
| Wash Arch: GPM @ PSI | 120 @ 60 |
| Undercarriage: GPM @ PSI | 35 @ 110 |
| Rinse Arch: GPM @ PSI | 70 @ 22 |
| Pump | Custom |
| Power Requirements | 230V, 1Ø -OR- 230V/460V, 3Ø |
| Spray Bar Dimensions (LxWxH) | Custom |
| Pump Frame Dimensions (LxWxH) | 45 x 21 x 67-in. |
| Holding Tank Dimensions (WxH) | 36 x 62-in. |

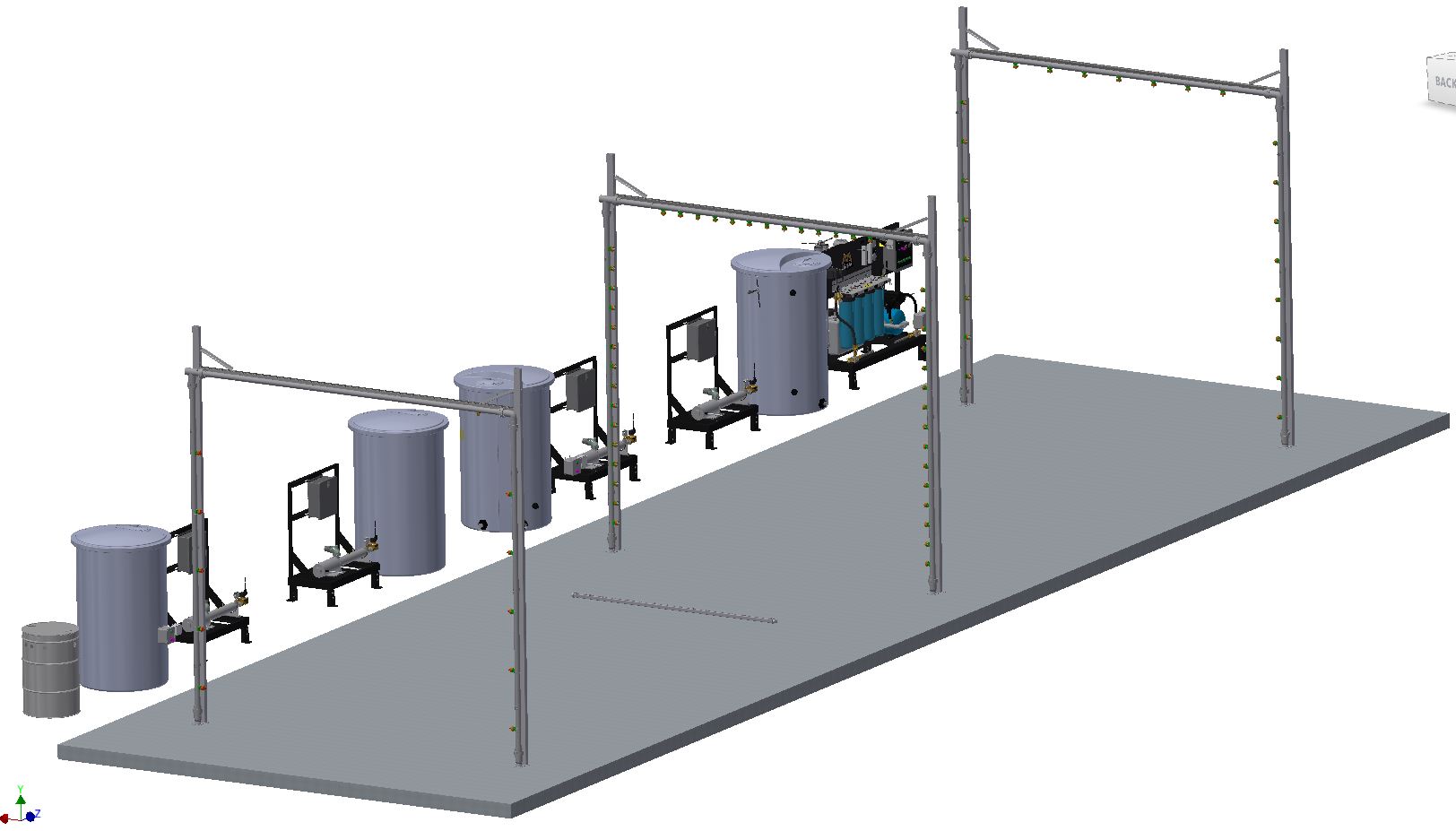

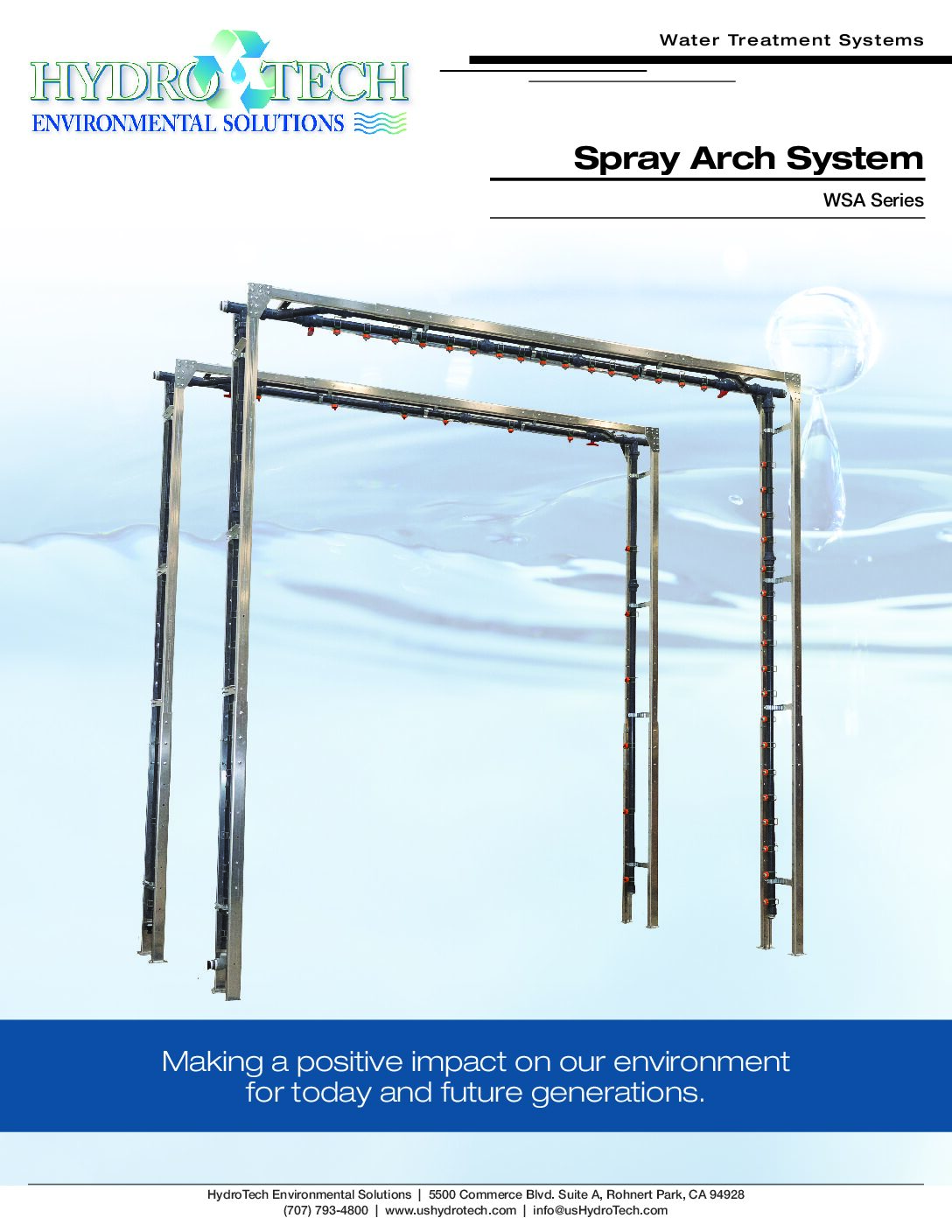

Spray Arch System
WSA Series
Constructed with aluminum frames, undercarriage spray bar and embedded spray nozzle, this system is customizable and designed for all types of drive-through vehicle wash systems.
Features:
·Photo-eye controls
·Aluminum frames and undercarriage spray bar
·Embedded spray nozzles
·250 or 500-gallon holding tanks
Option:
·Reverse Osmosis System for spot-free rinsing
Custom built units are available. Consult Mi-T-M Equipment Sales & Service for more information.
