| Weight | 450 lbs |
|---|---|
| Dimensions | 48 × 36 × 60 in |
| GPM @ PSI | 35 @ 110 |
| Pump | 3.0 HP |
| Power Requirements | 230V, 1Ø, 15.0A, 208-230V, 3Ø, 10.0A or 460V, 3Ø, 5.0A |
| Nozzles | Sixteen 25°, size 15 nozzles spaced 6-in. apart |
| Spray Bar Cover Dimensions (LxWxH) | 4x3x5ft. |
| Holding Tank Dimensions (WxH) | 36 x 62-in. |
| Width | 36 |
|---|---|
| Height | 60 |
| Length | 48 |
| Shipping Weight | 450 |

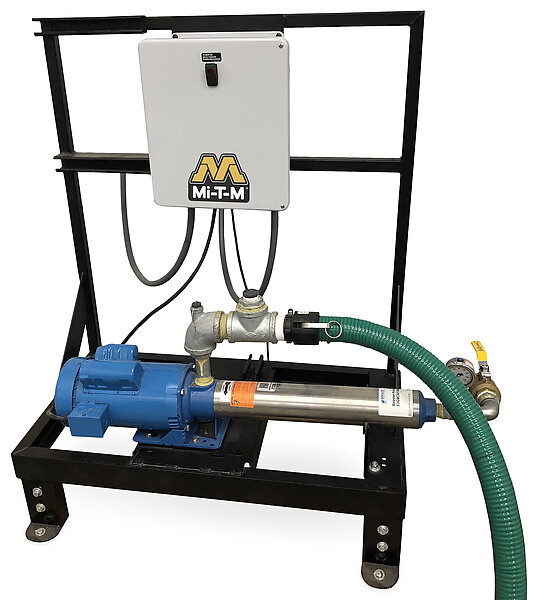

The ideal accessory for any wash bay, this system helps to remove mud and grime build-up under vehicles and small equipment. The durable steel frame ensures longevity even in harsh conditions.
Features:
·Powder coated frame with control box and pump
·8-foot stainless-steel spray bar with 16 nozzles
·Auto shut-off valve
·250-gallon holding tank, supply hose and make-up valve
·PLC controls for automatic pump operation with photo-eye and remote box
·ETL listed NEMA-4 rated corrosion-proof control panel
Accessories:
·Nozzles
Options:
·460V, 3Ø
·Detergent
Custom built units are available. Consult Mi-T-M Equipment Sales & Service for more information.
| MODEL NUMBER | GPM @ PSI | Pump | POWER REQUIREMENTS | SPRAY BAR COVER DIMENSIONS (LxWxH) |
PUMP FRAME DIMENSIONS (LxWxH) |
|
|---|---|---|---|---|---|---|
| WCU-35-0ME1 | 35 @ 110 | 3.0 HP | 230V, 1Ø, 15.0A | 96x6x0.5in. | 4x3x5ft. | 36x62in. |
| WCU-35-0ME3 | 35 @ 110 | 3.0 HP | 208-230V, 3Ø, 10.0A or 460V, 3Ø, 5.0A | 96x6x0.5in. | 4x3x5ft. | 36x62in. |
