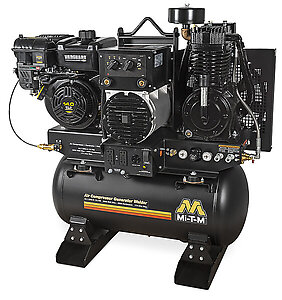

30-Gallon Two Stage Gasoline AGW-SV14-30M

AGW-SV14-30M

Maximum performance in a single machine, the air compressor, generator, welder combination can tackle any job in the shop or in the field. It is the ideal heavy equipment for mechanics and industrial equipment repairs in the construction, mining, logging and oil and gas industries.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A maximum

Frame: Powder coated ASME coded receiver tanks · 16-gauge powder coated belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16½-inch fly wheel

*Equipped with 150-PSI maximum rated regulator.

Specifications

Displacement/Engine 408cc Vanguard OHV with electric start - battery and battery cables not included
Rated Speed 3600 RPM
CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Compressor Two Stage, cast iron
Tank Size 30-gallon receiver tank
Max AC Output 5000 watts
Rated AC Output 4500 watts
Alternator Wattage Continous On-Load @ 90 PSI 3000 watts
Alternator Wattage Continous On-Load @ 175 PSI 2500 watts
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 41.5/20.8 off-load
Cont. Amps (120V/240V) 37.5/18.8 off-load
Receptacles (2) 120V, 20A GFCI duplex; (1) 120V/240V 20A twist lock
Duty Cycle (10 Minute Run Time) 150A @ 100%
DC Voltage 50-170A working range
Fuel Tank 1.53 gallon

Weights & Dimensions

Net Weight 605.00 lbs.
Shipping Weight 670.00 lbs.
Length 46.00 in.
Width 22.00 in.
Height 47.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

Battery Tray, Box and 2-Foot of Cables Included AX-0070

Attaches to engine side of unit
