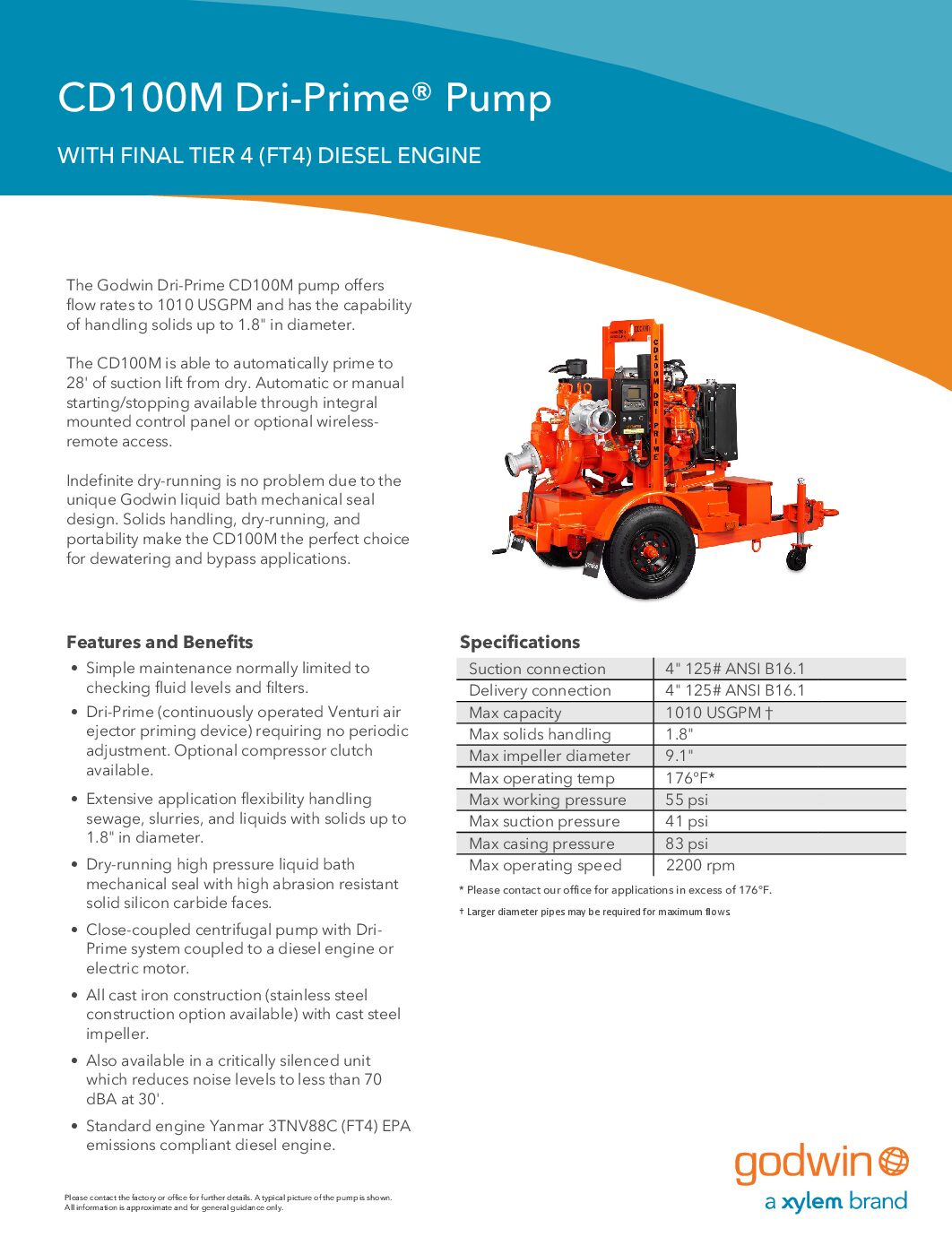

4″ Godwin Pump

CD100M

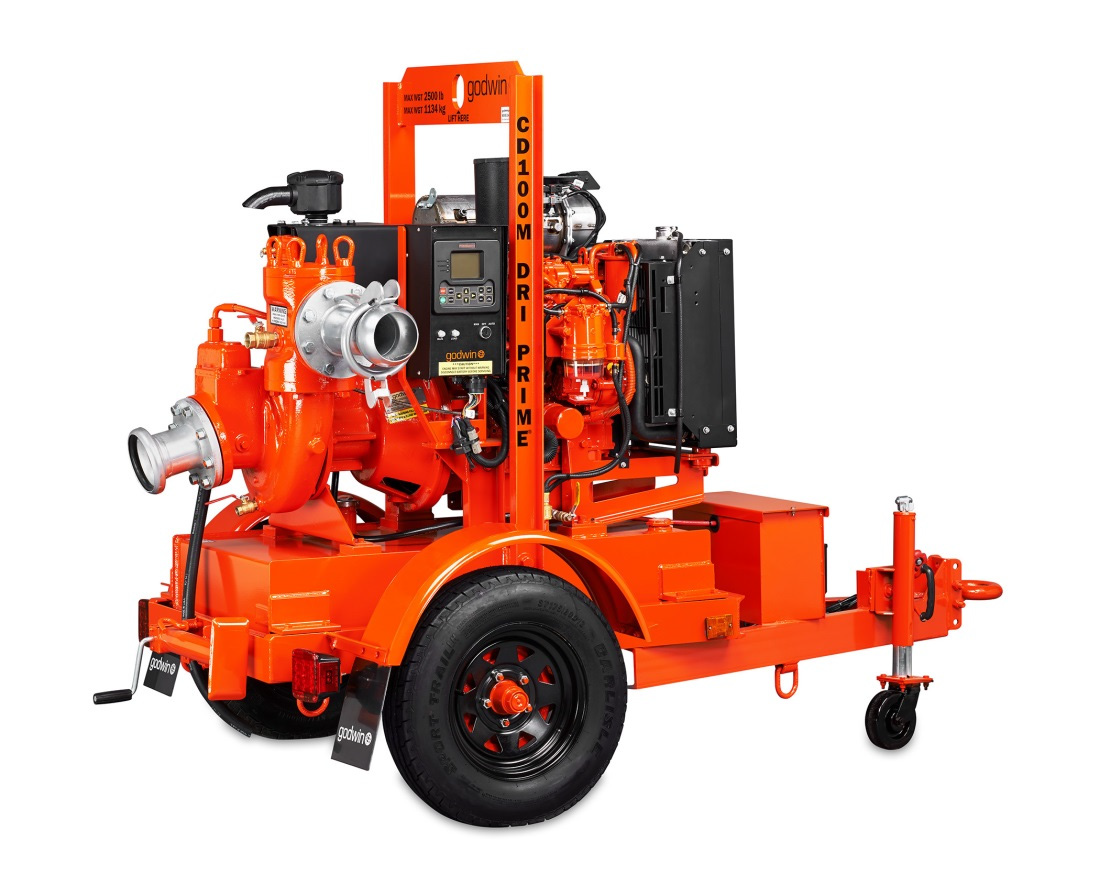

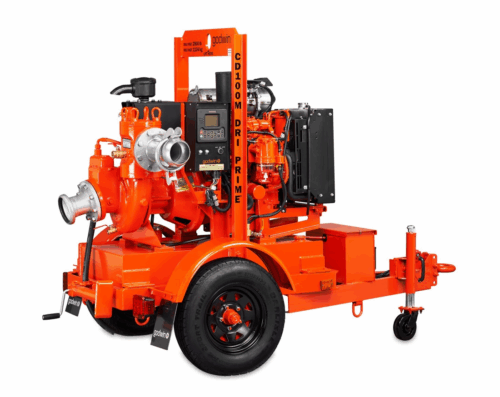

The Godwin Dri-Prime CD100M pump offers flow rates to 1010 USGPM and has the capability of handling solids up to 1.8″ in diameter.

The CD100M is able to automatically prime to 28′ of suction lift from dry. Automatic or manual starting/stopping available through integral mounted control panel or optional wireless-remote access.

Indefinite dry-running is no problem due to the unique Godwin liquid bath mechanical seal design. Solids handling, dry-running, and portability make the CD100M the perfect choice for dewatering and bypass applications.

Features and Benefits:

  • Simple maintenance normally limited to checking fluid levels and filters.
  • Dri-Prime (continuously operated Venturi air ejector priming device) requiring no periodic adjustment. Optional compressor clutch available.
  • Extensive application flexibility handling sewage, slurries, and liquids with solids up to 1.8″ in diameter.
  • Dry-running high pressure liquid bath mechanical seal with high abrasion resistant solid silicon carbide faces.
  • Close-coupled centrifugal pump with Dri-Prime system coupled to a diesel engine or electric motor.
  • All cast iron construction (stainless steel construction option available) with cast steel impeller.
  • Also available in a critically silenced unit which reduces noise levels to less than 70 dBA at 30′.
  • Standard engine Yanmar 3TNV88C (FT4) EPA emissions compliant diesel engine.
