| Flow Rate | 0-15 GPM |
|---|---|
| Clarifier Tank | 600-gallons |
| Media | 1,300 sq. ft. |
| Sump Pump | 1.0 HP |
| Transfer Pump | 1/2 HP |
| Power Requirements | 230V, 1Ø, 20.0A, 230V, 3Ø, 15.0A |
Biological Recycle/Clarifier Systems

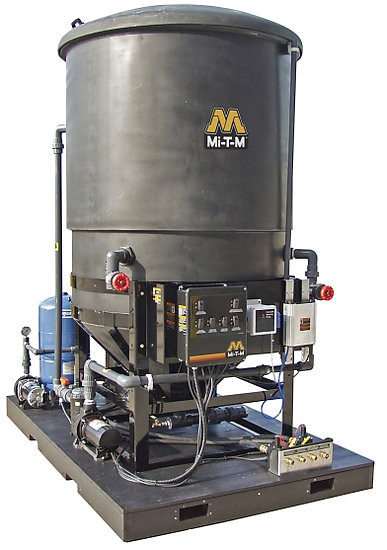

BIO Series Recycle/Clarifier
A clarifier allows for greater settling and removal of accumulated solids in wastewater before treatment. This pretreatment makes it easier for water treatment systems to operate effectively.
Features:
·Cone-shaped tank
·Quality recycled wash water without common odor problems
·1.0 HP sump pump
·Heavy-duty, corrosive-resistant and UV-resistant poly-skid
·Peristaltic pump is self-priming
·Mazzei® venturi air injection system
·ETL listed NEMA-4 rated corrosion-proof control panel
Accessories:
·Air fine-bubble injector
·Check valve
·Sludge box
·Biodegradable sludge bags
·Replacement media
Options:
·Pinch valve assemblies
·Ozone
·Recirculation option for floats
·BIO sump pump conversion
·165-gallon water tank upgrade
·Product tank overflow
·460V, 3Ø
·High solids media
·Hour meter
·Coagulation system
Biological water treatment systems are customizable for your specific application. Contact US Hydrotech for more information.
| Model Number | Flow Rate | Clarifier Tank | Media | Sump Pump (Included) | Transfer Pump | Power Requirements |
|---|---|---|---|---|---|---|
| BIO-15-0M10 | 0-15 GPM | 600 gallons | 1,300 sq. ft. | 1.0 HP | 1/2 HP | 230V, 1Ø, 20.0A |
| BIO-15-0M30 | 0-15 GPM | 600 gallons | 1,300 sq. ft. | 1.0 HP | 1/2 HP | 230V, 3Ø, 15.0A |
15-0M10/0M30 Parts List
