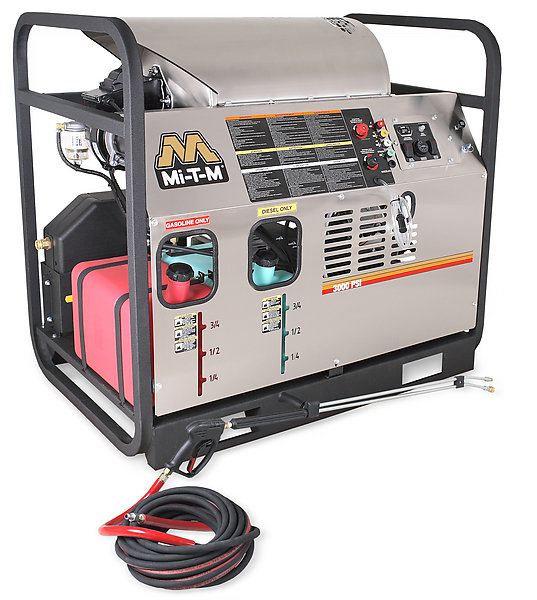

Most reliable for the heaviest construction applications, the HDS Series is a powerhouse. This series features a wraparound frame with stainless-steel panels for maximum durability.

Pump:
·Factory preset unloader
·Adjustable high pressure detergent injector

Engine:
·Liquid-cooled Kubota diesel engine with electric start – battery not included

Frame:
·Heavy-duty powder coated steel square tube skid frame
·Stainless-steel coil wrap, control panel and removable front panel

Components:
·Horizontal schedule 80 pipe coil
·120V/15-amp auxiliary GFCI outlet
·2900-watt generator for efficient power to the burner and controls
·No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
·Three-way ball valve for inlet selection
·Detergent and steam valves
·Adjustable thermostat
·Hour meter

Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25° and 40° plus wet steam and fixed detergent nozzle
·50-foot x 1/2-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·3 year engine

Certification:
·CSA Certified – US and Canada
