Biological Recycle/Discharge Systems

Name: Biological Recycle/Discharge Systems
Brand: Mi-T-M
SKU: BIO Series Recycle/Discharge
Availability: InStock

BIO Series Recycle/Discharge

Flow Rate

Biological Media

Clear

Add to Quote

INNOVATIVE & SUSTAINABLE SOLUTIONS

FULL-SERVICE COMPANY

SERVING COMPANIES NATIONALLY

BUILT FOR LONG-LASTING EFFICIENCY

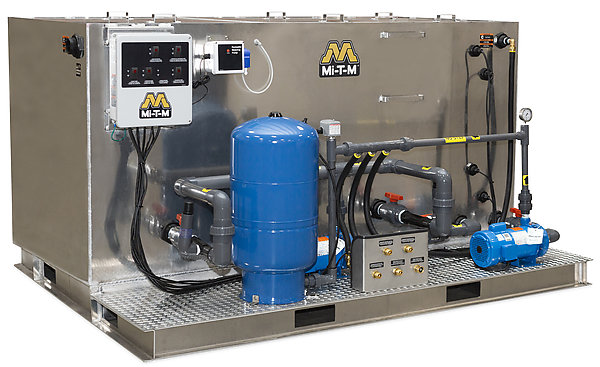

The popular BIO Series system utilizes fixed-film bacteria in conjunction with coalescing media to treat wastewater. Oxygen is added to the bacteria in the waste stream by venturi injection system.

Features:
·Bioreaction tank
·Biofilm generative media
·Aeration system
·Pressurized tank
·Pressure manifold
·Submersible sump pump
·Marine aluminum construction with slope bottomed design
·ETL listed NEMA-4 rated corrosion-proof control panel

Accessories:
·Waterfall filter
·Grass carts
·Peristaltic pump assemblies
·Aluminum round sump pit and grating
·Microbes

Options:
·Epoxy-lined tanks
·High solids media
·Ozone
·Automatic dump valves
·250 or 550-gallon product tank expansion
·pH control systems
·BIO sump pump conversion
·Hour meter
·Heater

Biological water treatment systems are customizable for your specific application. Contact Mi-T-M Equipment Sales & Service for more information.

Model Number	Flow Rate	Biological Media	Tank Capacity	Construction Material	Sump Pump	Transfer Pump	Power Requirements
BIO-20D-0M10	0-20 GPM	2,304 sq. ft.	890 gallons	Marine Aluminum	1/2 HP	–	230V, 1Ø, 15.0A
BIO-20D-0M30	0-20 GPM	2,304 sq. ft.	890 gallons	Marine Aluminum	1/2 HP	–	230V, 3Ø, 10.0A
BIO-20R-0M10	0-20 GPM	2,304 sq. ft.	890 gallons	Marine Aluminum	1/2 HP	1.5 HP	230V, 1Ø, 25.0A
BIO-20R-0M30	0-20 GPM	2,304 sq. ft.	890 gallons	Marine Aluminum	1/2 HP	1.5 HP	230V, 3Ø, 15.0A
BIO-20R-0M11	0-20 GPM	2,304 sq. ft.	890 gallons	Marine Aluminum	1/2 HP	1.5 HP	230V, 1Ø, 25.0A
BIO-20R-0M31	0-20 GPM	2,304 sq. ft.	890 gallons	Marine Aluminum	1/2 HP	1.5 HP	230V, 3Ø, 15.0A
BIO-25R-0M10	0-25 GPM	3,456 sq. ft.	1,434 gallons	Marine Aluminum	1/2 HP	2.0 HP	230V, 1Ø, 25.0A
BIO-25R-0M30	0-25 GPM	3,456 sq. ft.	1,434 gallons	Marine Aluminum	1/2 HP	2.0 HP	230V, 3Ø, 15.0A
BIO-35R-0M10	0-35 GPM	6,480 sq. ft.	2,244 gallons	Marine Aluminum	1/2 HP	2.0 HP	230V, 1Ø, 25.0A
BIO-35R-0M30	0-35 GPM	6,480 sq. ft.	2,244 gallons	Marine Aluminum	1/2 HP	2.0 HP	230V, 3Ø, 15.0A

Flow Rate	0-20 GPM, 0-25 GPM, 0-35 GPM
Biological Media	2,304 sq. ft., 3,456 sq. ft, 6,480 sq. ft
Tank Capacity	890-gallons, 1,434 gallons, 2,244-gallons
Material of Construction	Marine aluminum
Sump Pump	1/2 HP
Transfer Pump	N/A, 1.5 HP, 2.0 HP
Power Requirements	230V, 1Ø, 15.0A, 230V, 3Ø, 10.0A, 230V, 1Ø, 25.0A, 230V, 3Ø, 15.0A
